Feng Studio

Actuation Counter

Regular price $12.00 USD $0.00 USD Unit price per

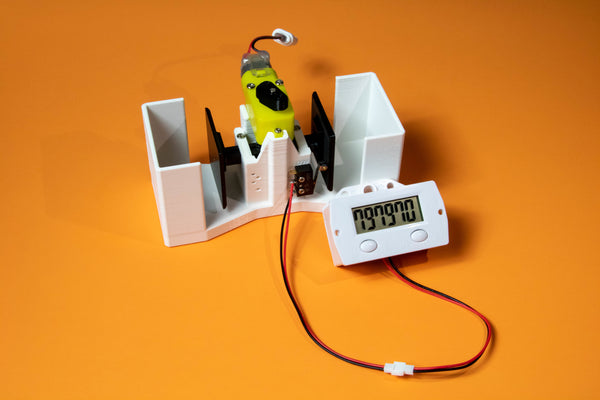

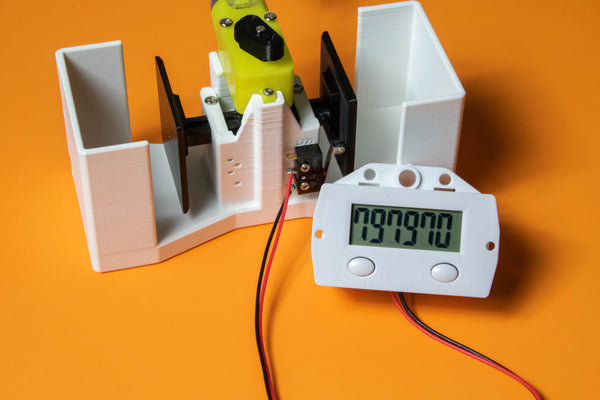

This is an optional accessory for the break-in machine

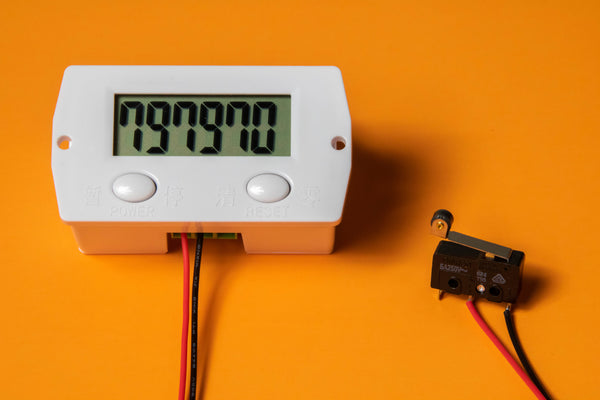

  • 6 digits - up to 999,999 actuations (resets to 0 automatically at 1 million)
  • OMRON SS-5GL2 microswitch with wheel - up to 30 million actuations (data from manufacturer)

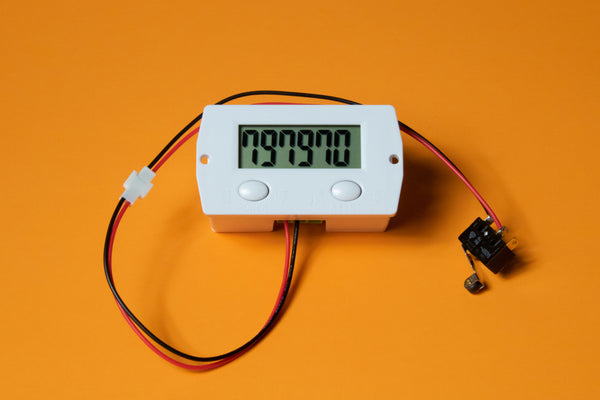

  • 30cm removable cable (2 x 15cm sections, detachable via white connector)
    • Note, as of 11/2022, new counters will be shipped out with a detachable cable instead of the older hot glue/soldered connection between the cable and switch. The cables are still pre-attached to the switch when shipped out, but if they fall off, the silver sharpie marks on the switch indicates which pins to plug into. The new cables are 15cm long only

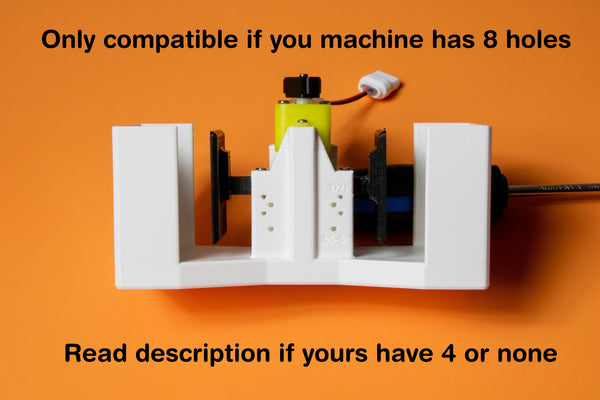

    • The new ones are not compatible with the 3x3 v1 (black and white from 2021), the 4x4 v1 (frost), the 4x4 LS v2 (matcha, sunflower, banana). It is compatible with the 3x3 RB (v2) and the 4x4 LB (v3)
  • Requires one 1.5v AA battery to operate
  • Includes 2 M2.3*10 self tapping screws
  • Some assembly required (instructions here), switch will come pre-soldered and secured with hot glue
  • Long press buttons to turn on/off or reset, value is saved when turned off
  • Injection molded plastic body - not 3d printed, I did not produce this
