PCB Ruler

$6.90 USD $0.00 USD

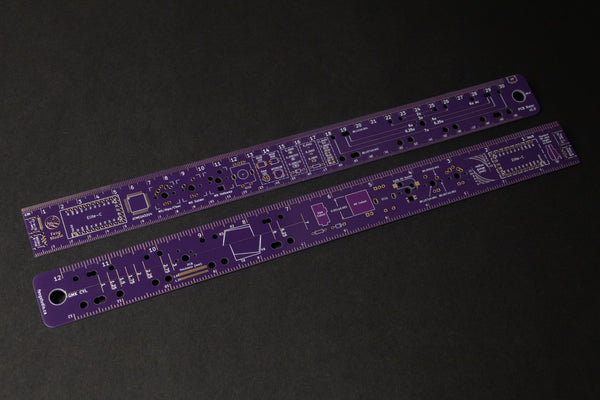

A keyboard-themed PCB ruler with useful features. This ruler was created to solve some obvious problems with most flat rulers. It's designed with both a right and left-handed scale, meaning it can be used to measure in any orientation, while always having numbering that's right side up.

The scales are aligned to the edge of the ruler, making it easy to start measuring from hard-to-reach places. The graduation lengths are tuned to be as readable as possible, all while maintaining a well-proportioned visual feel consisting of keyboard related footprints sprinkled throughout.

What's Included:

  1. Ruler in plastic packaging

Key Features:

  • 1.6mm FR4, colored solder mask, glossy finish
  • White silkscreen, ENIG gold plated surface finish
  • 320mm*30mm overall
  • Edge-aligned scales, RH/LH compatible
  • Subtle homages to the CherryMX datasheet
  • 8mm hole for hanging/storage

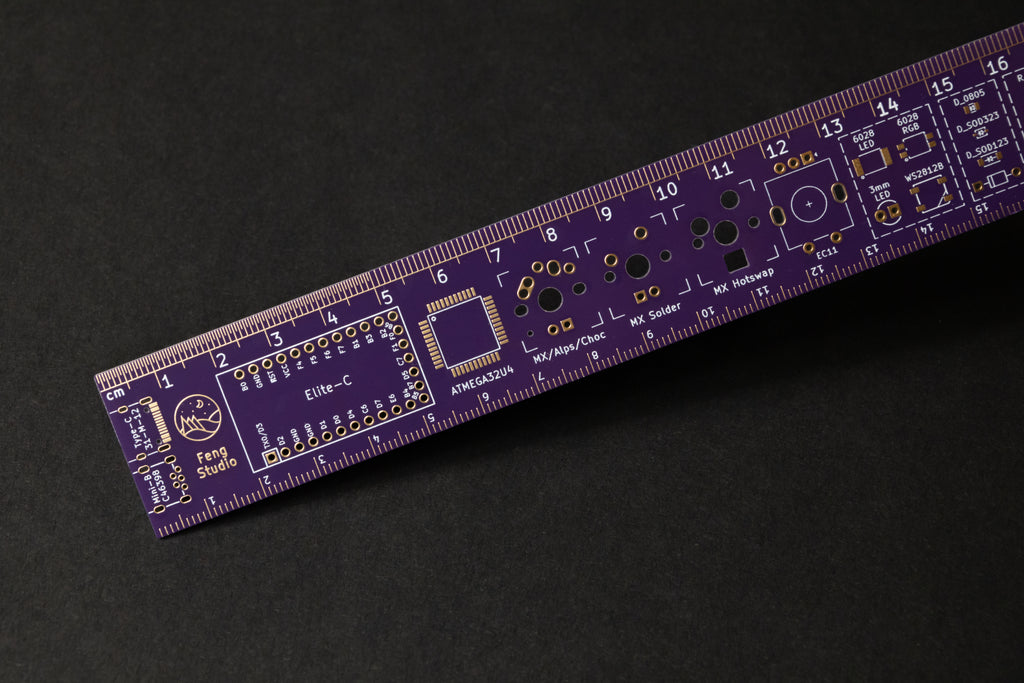

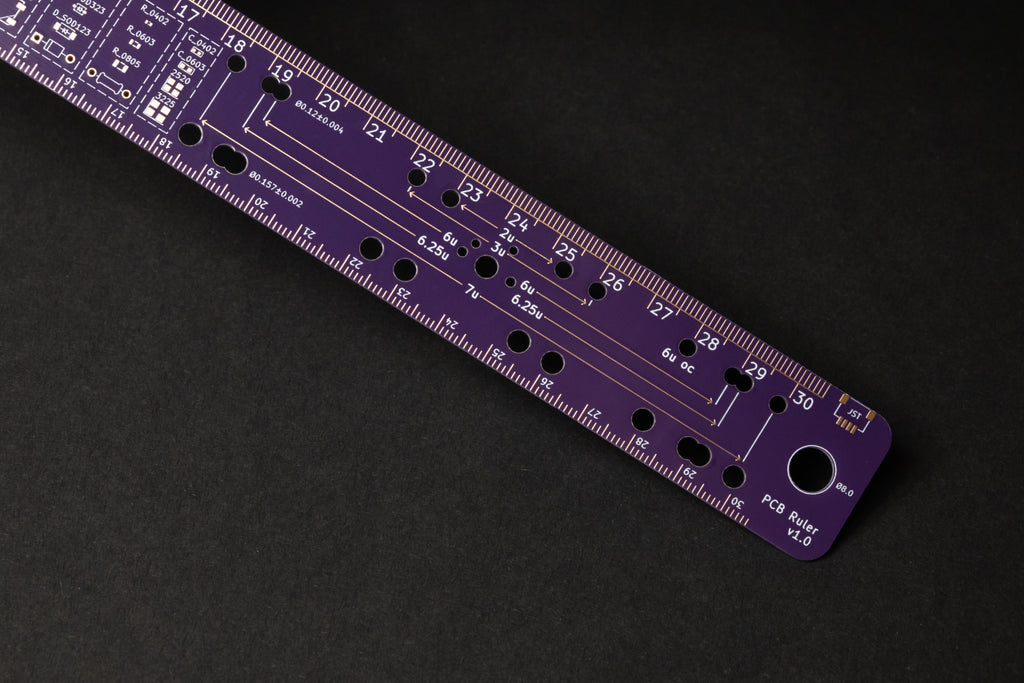

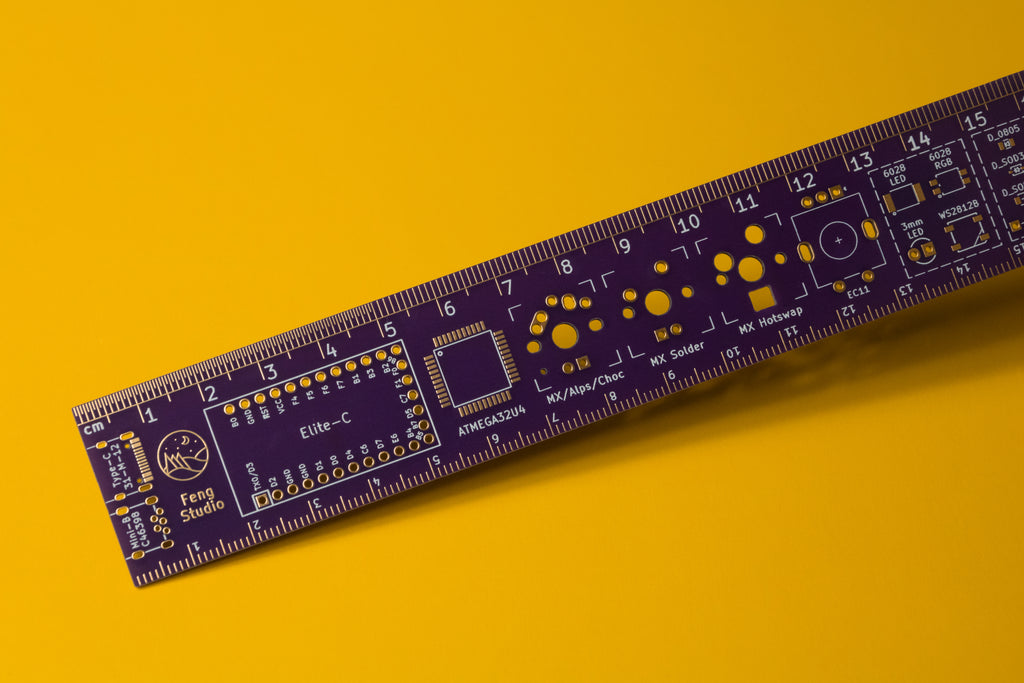

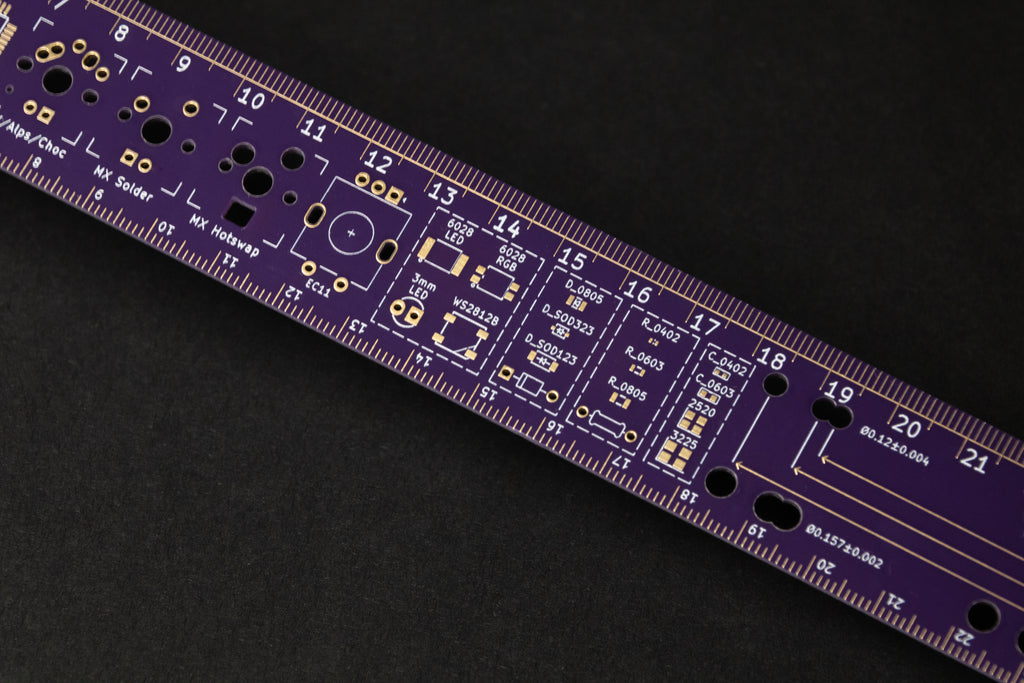

Front Side Detailed Feature List:

  • Centimeter scale in RH/LH
    • Graduations every 1mm increment
    • Numerals & long stick indicator every 10mm increment
    • Medium stick indicator every 5mm increment
    • Graduations every 0.5mm increment (only covers 5cm mark and below)
  • Mini & type-c usb connectors
  • Logo
  • Elite-C/pro micro boards
  • ATMEGA32U4 microcontroller
  • Various switches & EC11 rotary encoder
  • Various LEDs, diodes, resistors, capacitors, crystals
  • PCB mount stabilizers in all sizes (usable as stab tester)
  • JST

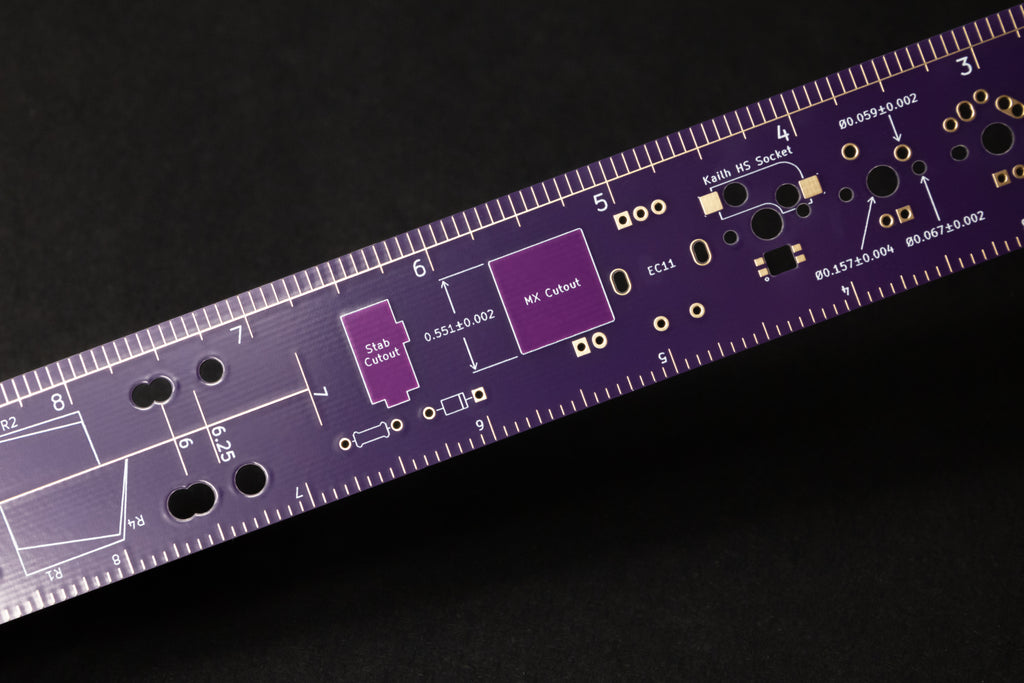

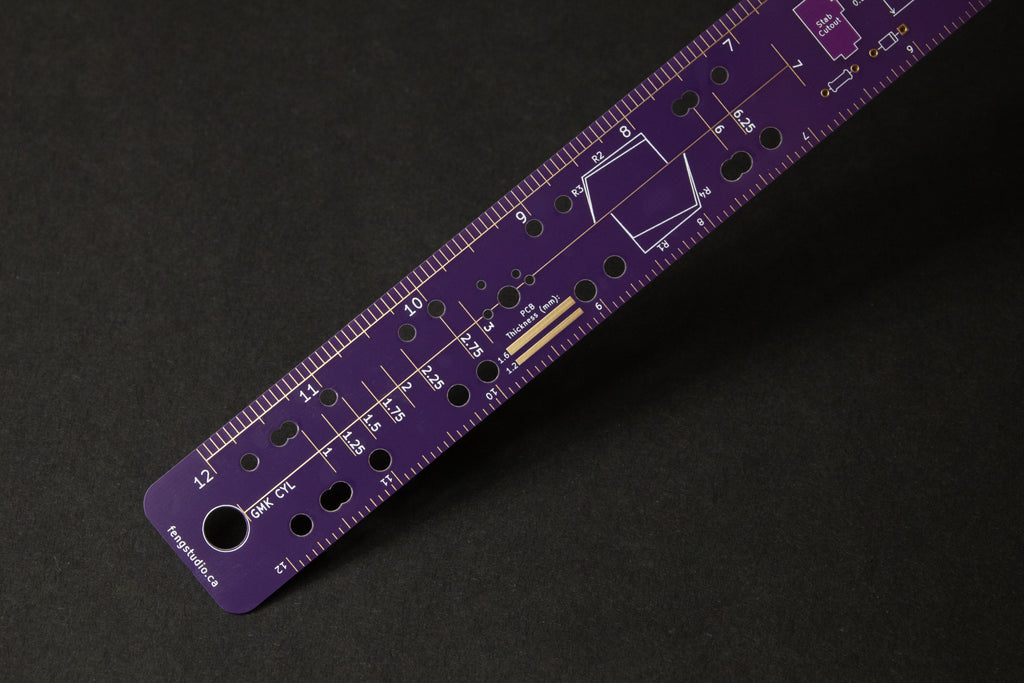

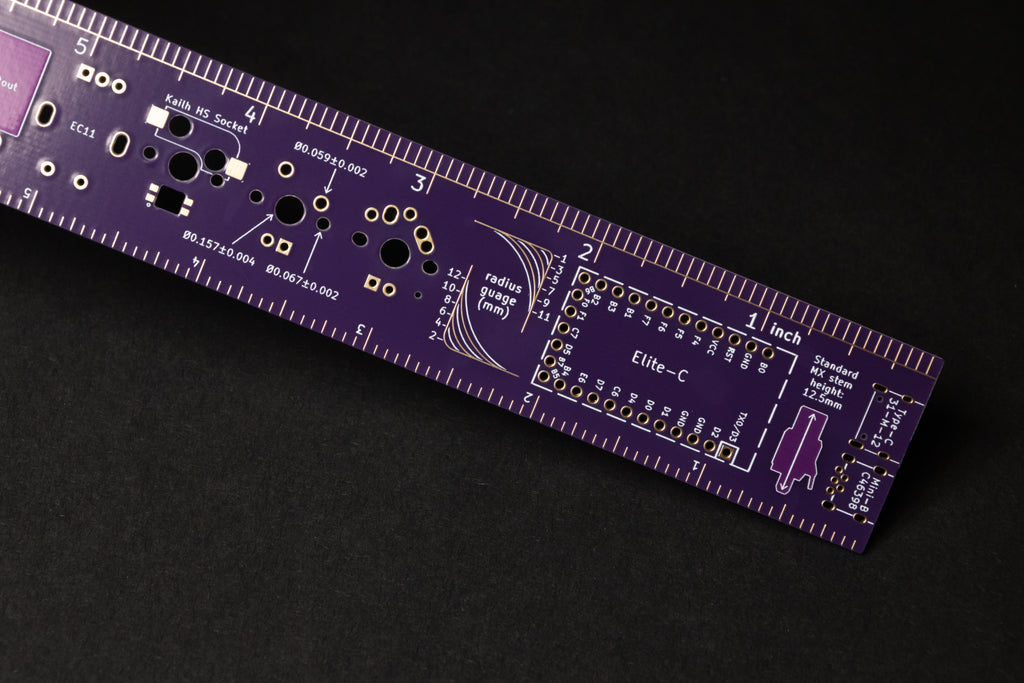

Back Side Detailed Feature List:

  • Inch scale in RH/LH
    • Graduations every 1/16in increment
    • Numerals & long stick indicator every 1in increment
    • Medium stick indicator every 1/2in increment
    • Short stick indicator every 1/4in increment
  • Keycap unit length measurement tool
  • PCB thickness measurement tool
  • Keycap row height (side profile) measurement tool (sized for GMK CYL)
  • Plate mount stabilizer & MX switch plate cutout illustrations
  • Radius gauge (mm)
  • Standard CherryMX stem length illustration

Other Info:

  • This is a cool looking ruler, it is not a working pcb
  • Some component footprints/silkscreens were slightly modified for visual appeal, they should not be used as design reference tools
  • Similar rigidity to a 0.8mm thick steel ruler
  • Unfortunately radius "gauge" was misspelled on the back side, this will be fixed in future versions
  • Acceptable quality standards document here
  • Thanks to keebio & ai03 for sharing some of the footprints used in this ruler
